SUMYOK Manual RV Solar SlideRack System SlideR1150 | For 300W–600W Solar Panels
SUMYOK Manual RV Solar SlideRack System SlideR1150 | For 300W–600W Solar Panels
Couldn't load pickup availability
Product Description
Maximize your RV rooftop solar potential with the Sumyok SlideR1150 Manual RV Solar SlideRack System.

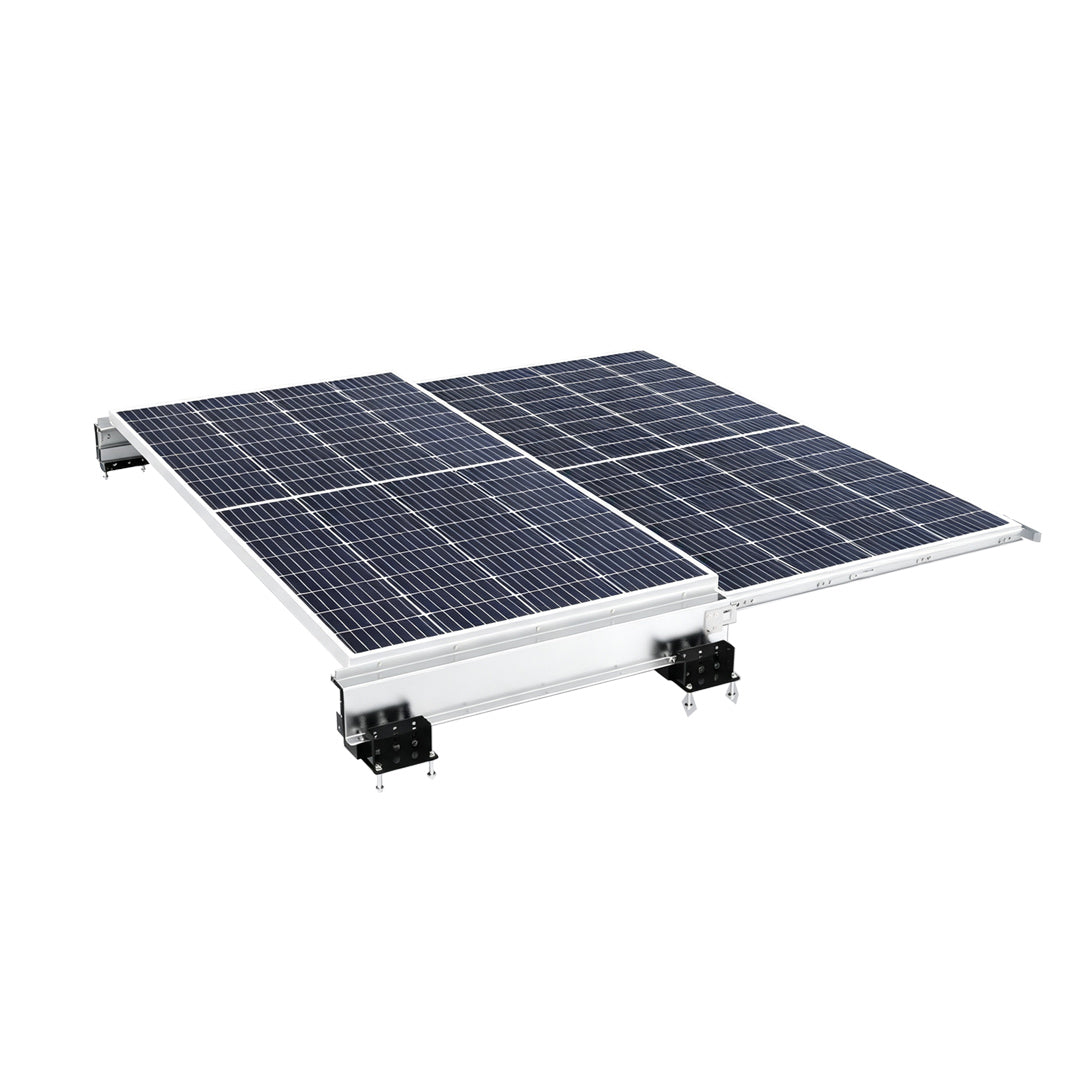

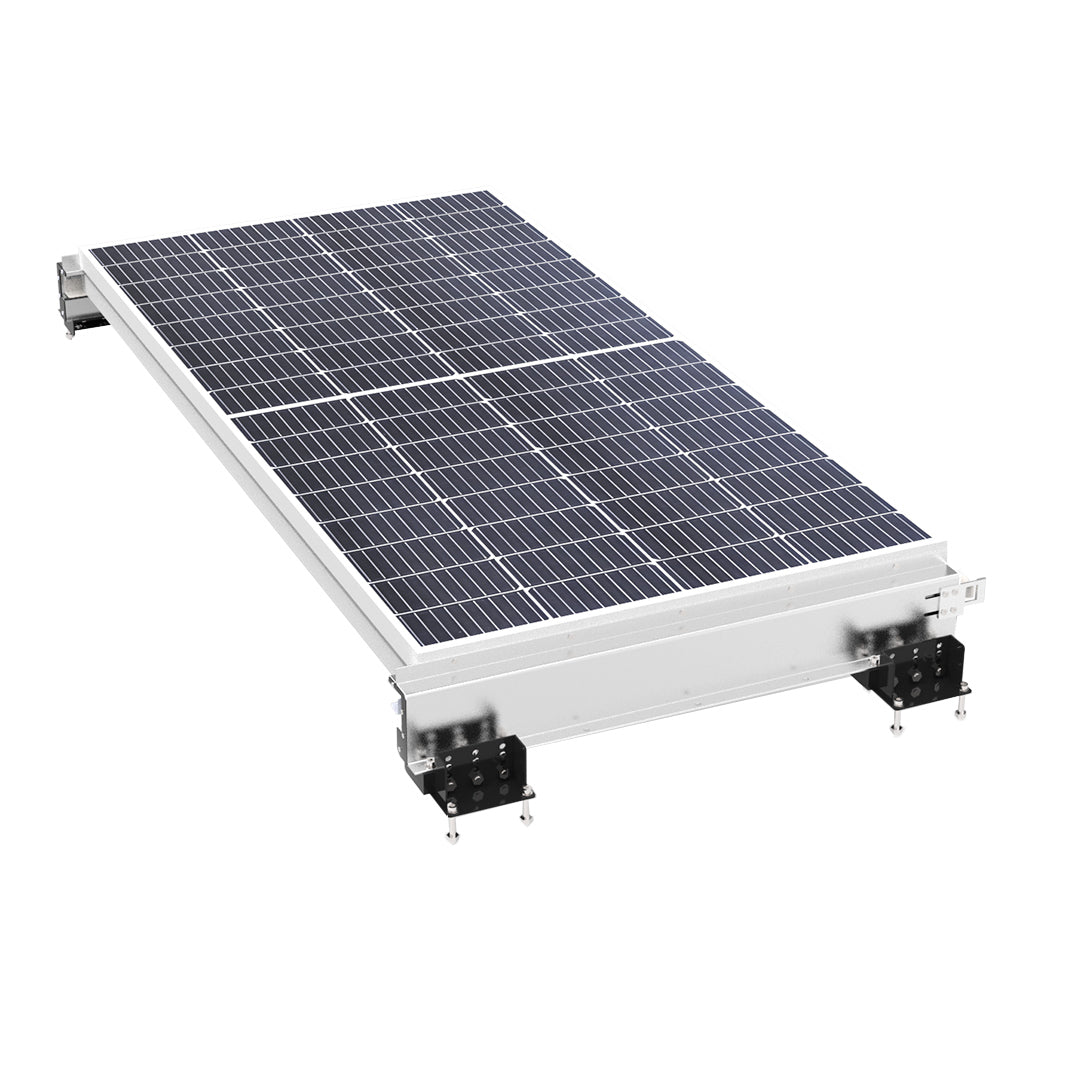

This manual slide-out mount features a dual-rail design that doubles power generation on the same roof footprint. Using the extendable pole, solar panels can be extended or retracted along the roof with ease.
The anti-rollback mechanism locks the system securely in place. Manual operation offers a reliable, straightforward alternative for those who prefer a non-motorized setup.

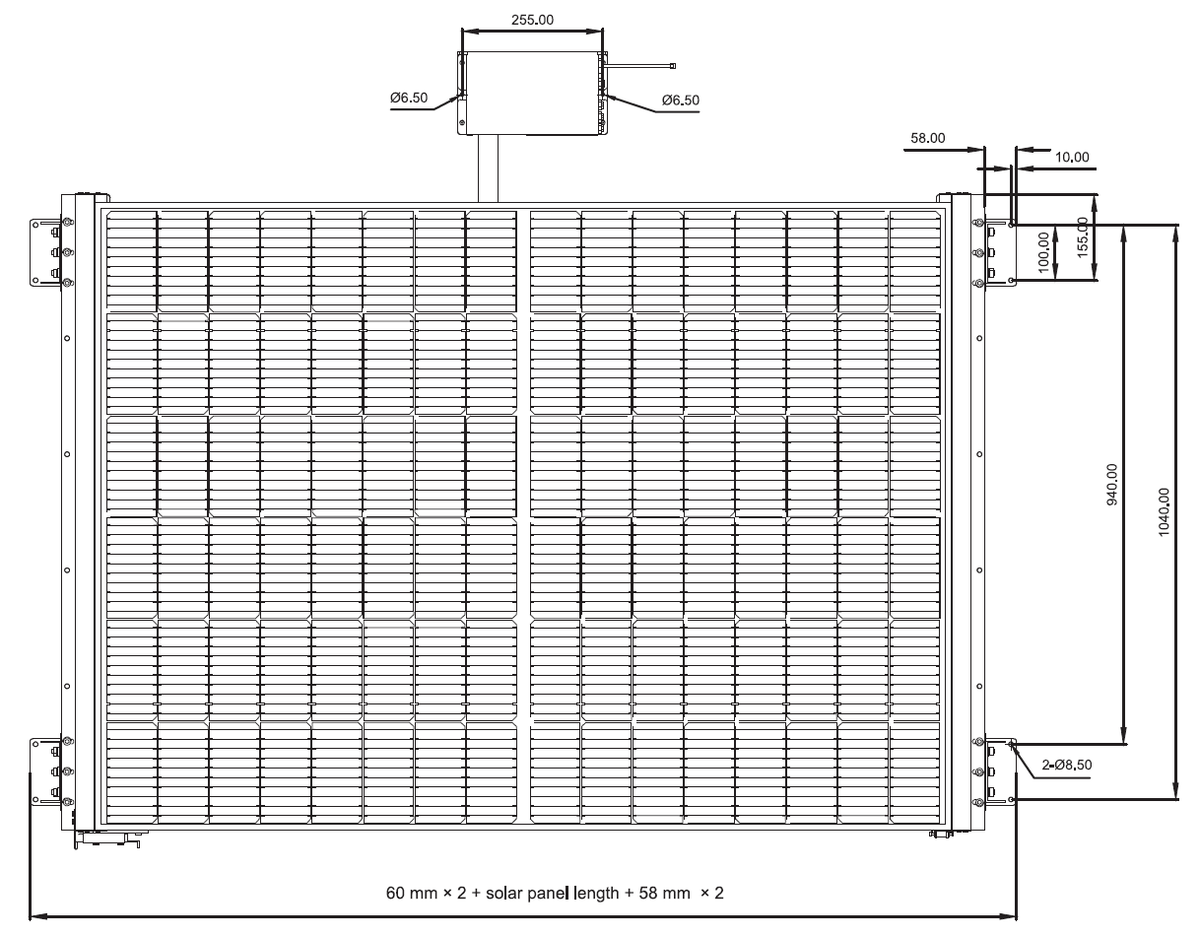

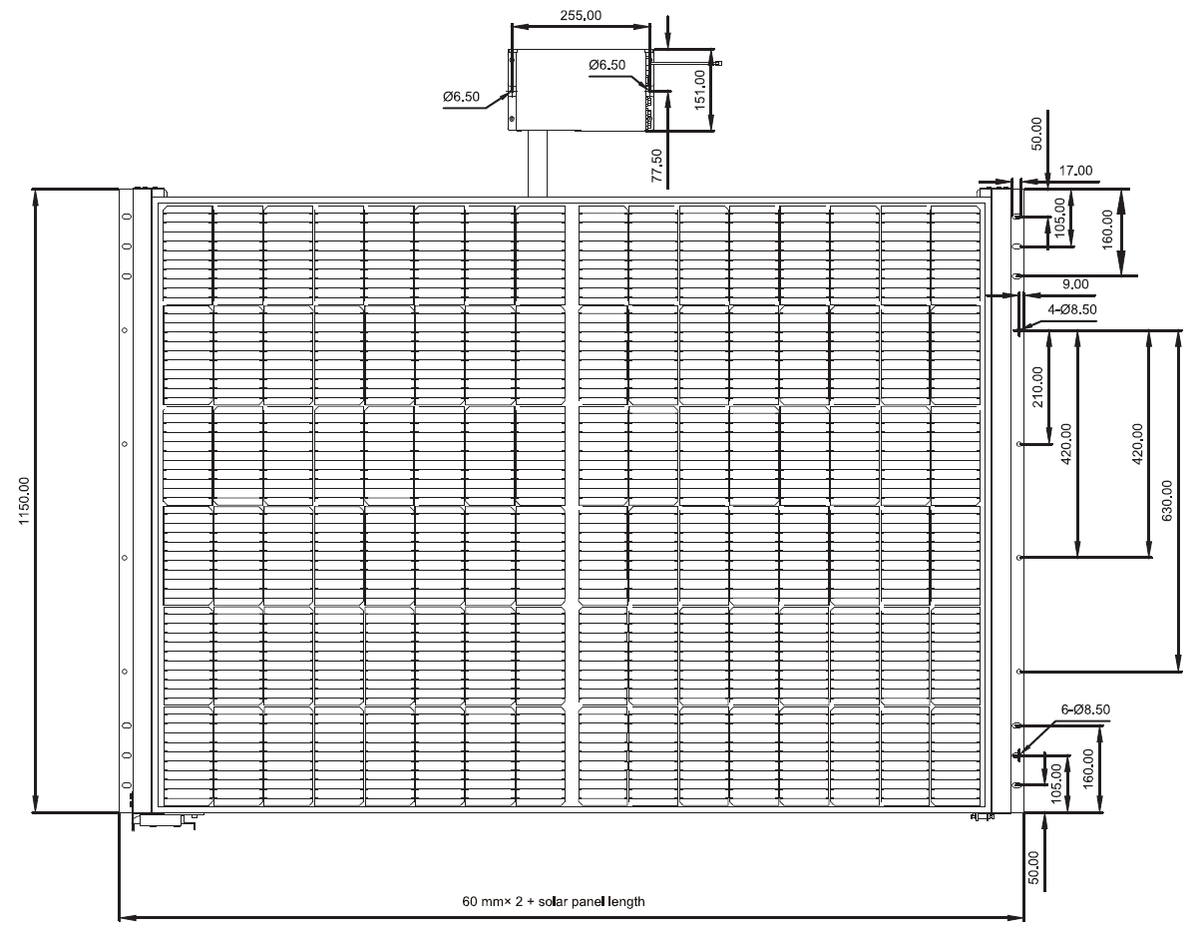

Fits solar panels 1500–2400 mm (59.1–94.5 in) in length × 1100–1150 mm (43.3–45.3 in) in width × 30–35 mm (1.2–1.4 in) in thickness.
For solar panels longer than 1900 mm (74.8 in), the Solar Panel Anti-Sag Cross Beam is required (sold separately).
Package Contents
- Rails Assembly × 2
- Extendable Pole with Hook × 1 (1.7 m / 5.6 ft)
- Spring-Loaded Latch Assembly × 1
- Anti-Rollback Mechanism × 1
- Curved Mounting Bracket × 4
- M5 Full-Steel Rivets × 21
- M8×50 Screw Kit × 11
- M4×30 Screws × 4
- Cable Conduit Sleeve × 1
- Cable Manager × 1
- M2 Hex Key × 1
- M3 Hex Key × 1
- M4 Hex Key × 1
- M6 Hex Key × 1
- Instruction Manual × 1
