SUMYOK RV Solar Slide Rack

SUMYOK RV Solar Slide Rack

$249.00 USD
$249.00 USD
Sale Sold out
Shipping calculated at checkout.

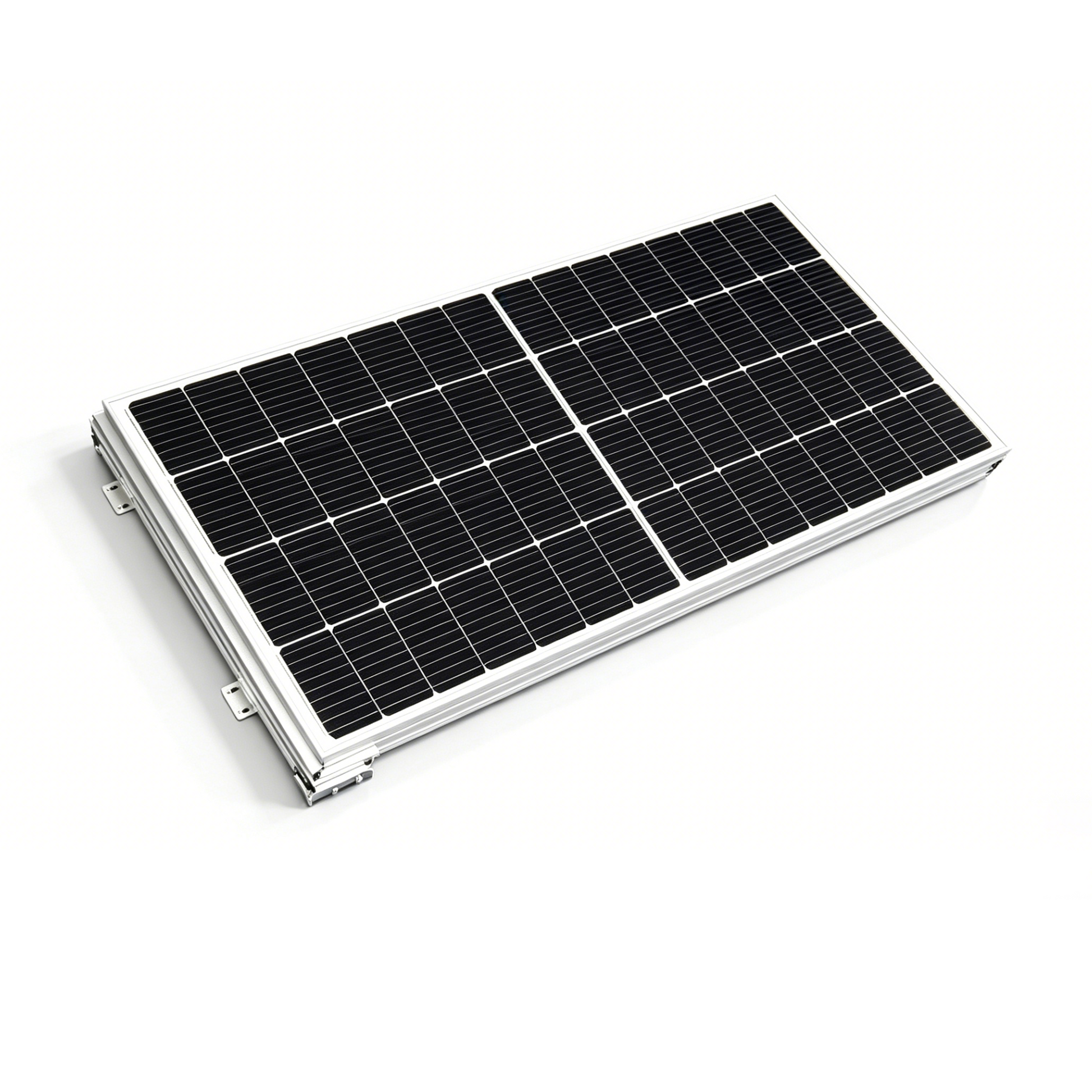

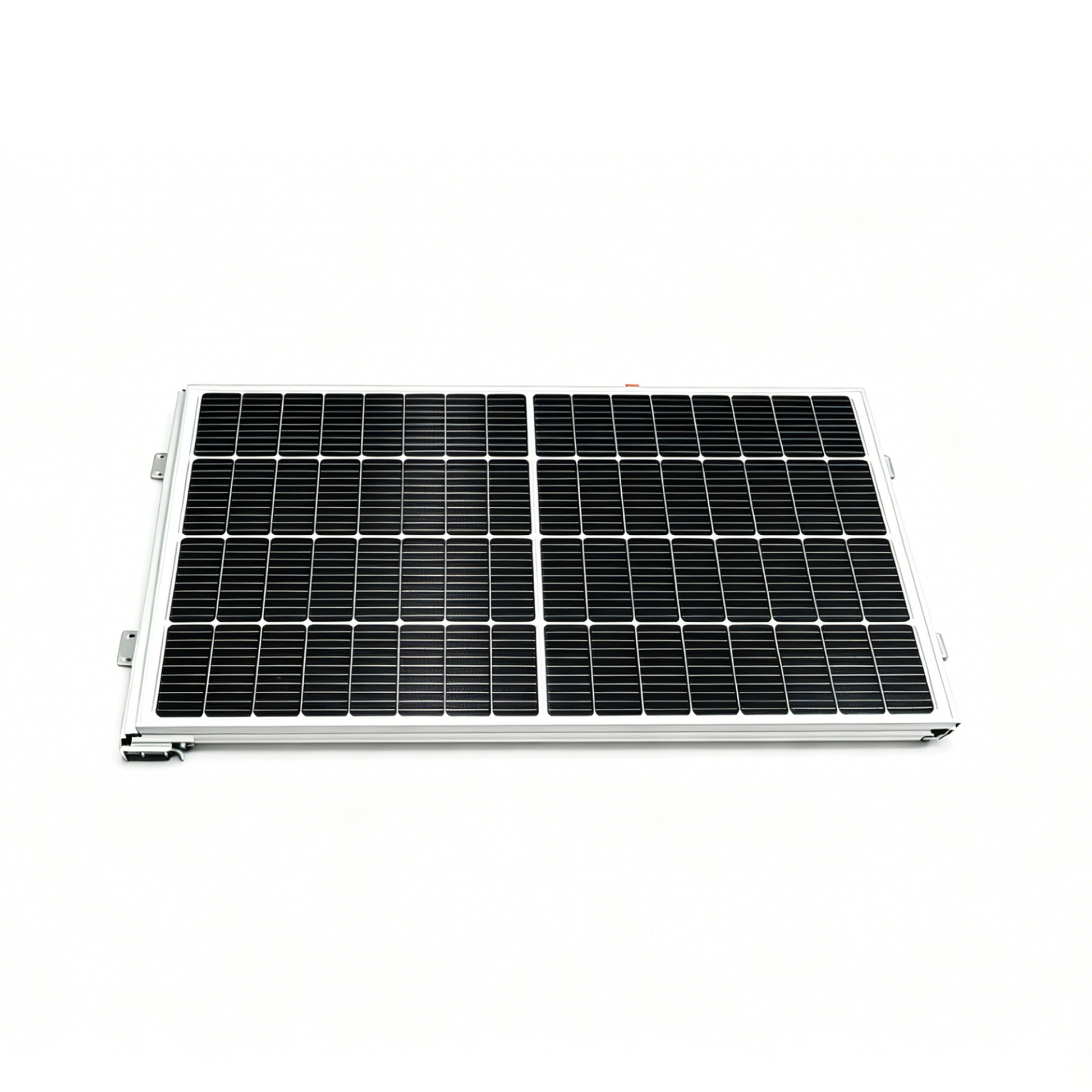

A solid and reliable slide-out mounting solution for RVs, rooftops, and off-grid systems.

Unlike fixed solar panel mounts, the Sumyok RV Solar Slide Rack is designed for space efficiency and flexible sun exposure. Whether you need to maximize power generation while parked or minimize footprint while traveling, this manual slide-out system gives you simple, tool-free control over your panel position.

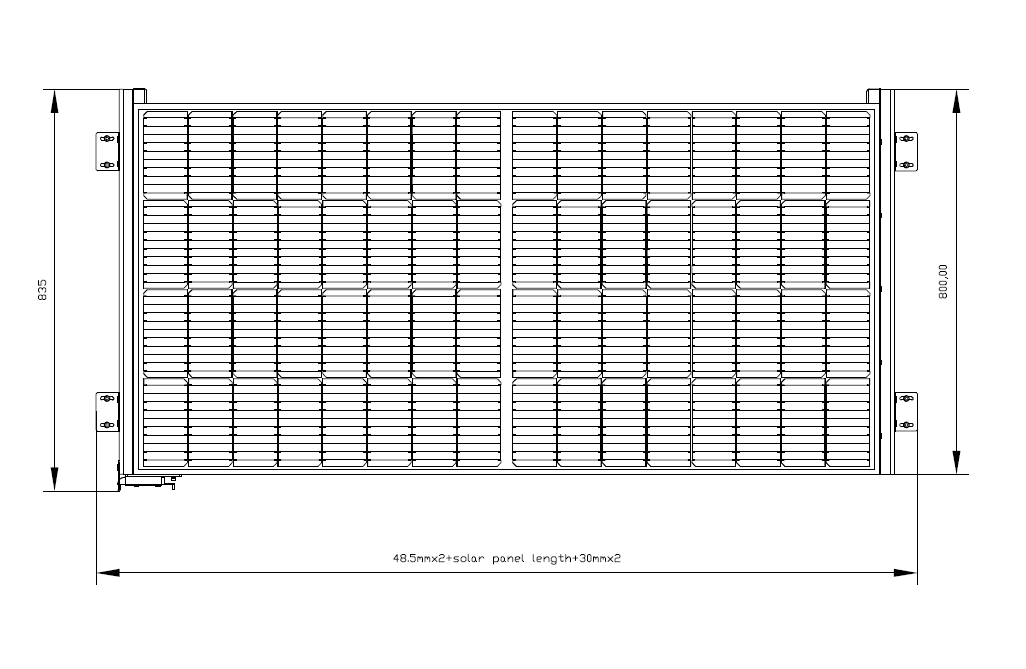

Specifications

Item

Details

Product Name

Sumyok RV Solar Slide Rack

Compatible Panel Length

1200 – 1800 mm (47.2 – 70.9 in)

Compatible Panel Width

700 – 800 mm (27.6 – 31.5 in)

Compatible Panel Height

30 – 35 mm (1.2 – 1.4 in)

Rail Travel

800 mm (31.5 in)

Rail Assembly Weight

2.8 kg ± 0.5 kg (6.2 lb ± 1.1 lb) per rail

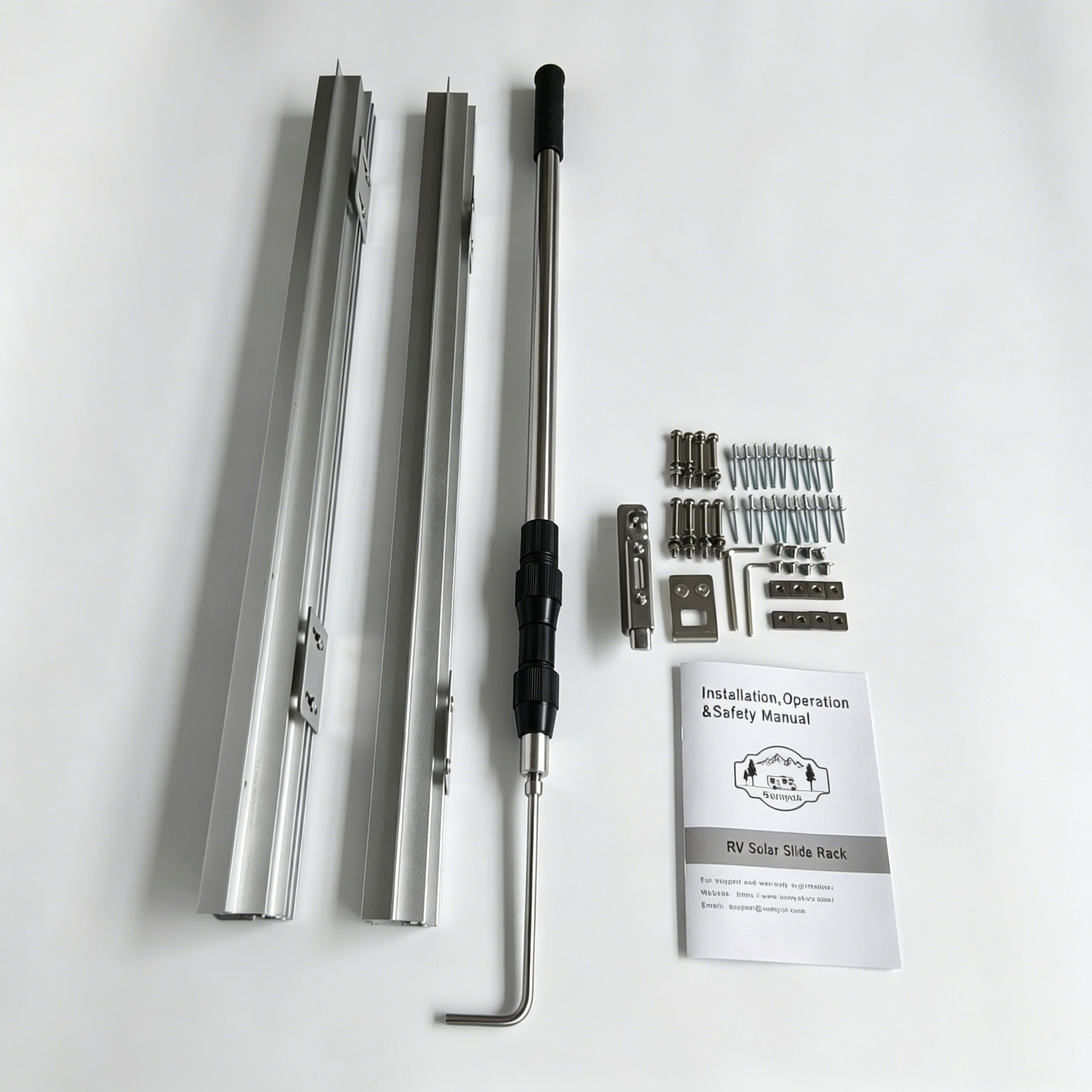

What's Included

  • Rail Assembly × 2
  • M4 and M3 Hex Keys × 1

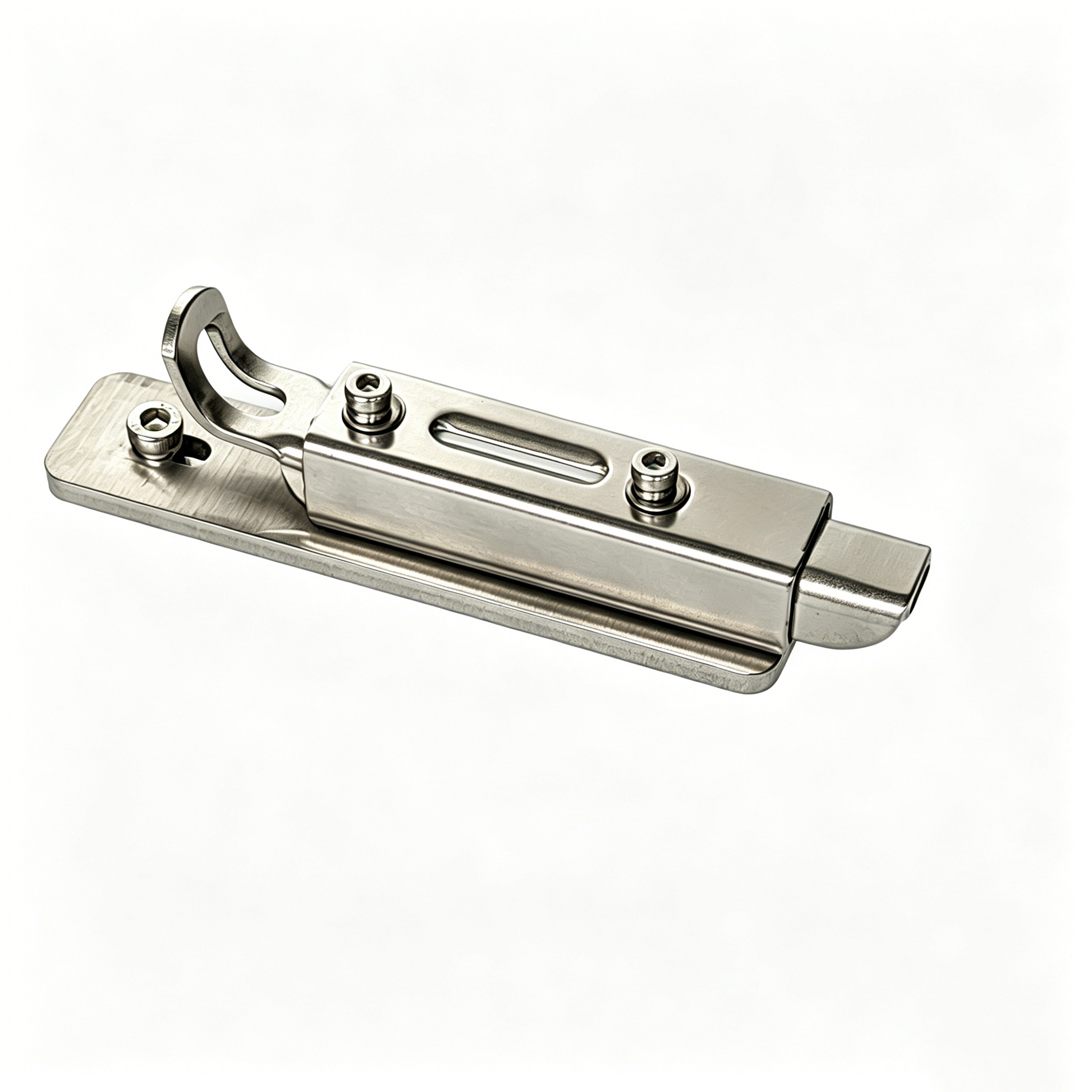

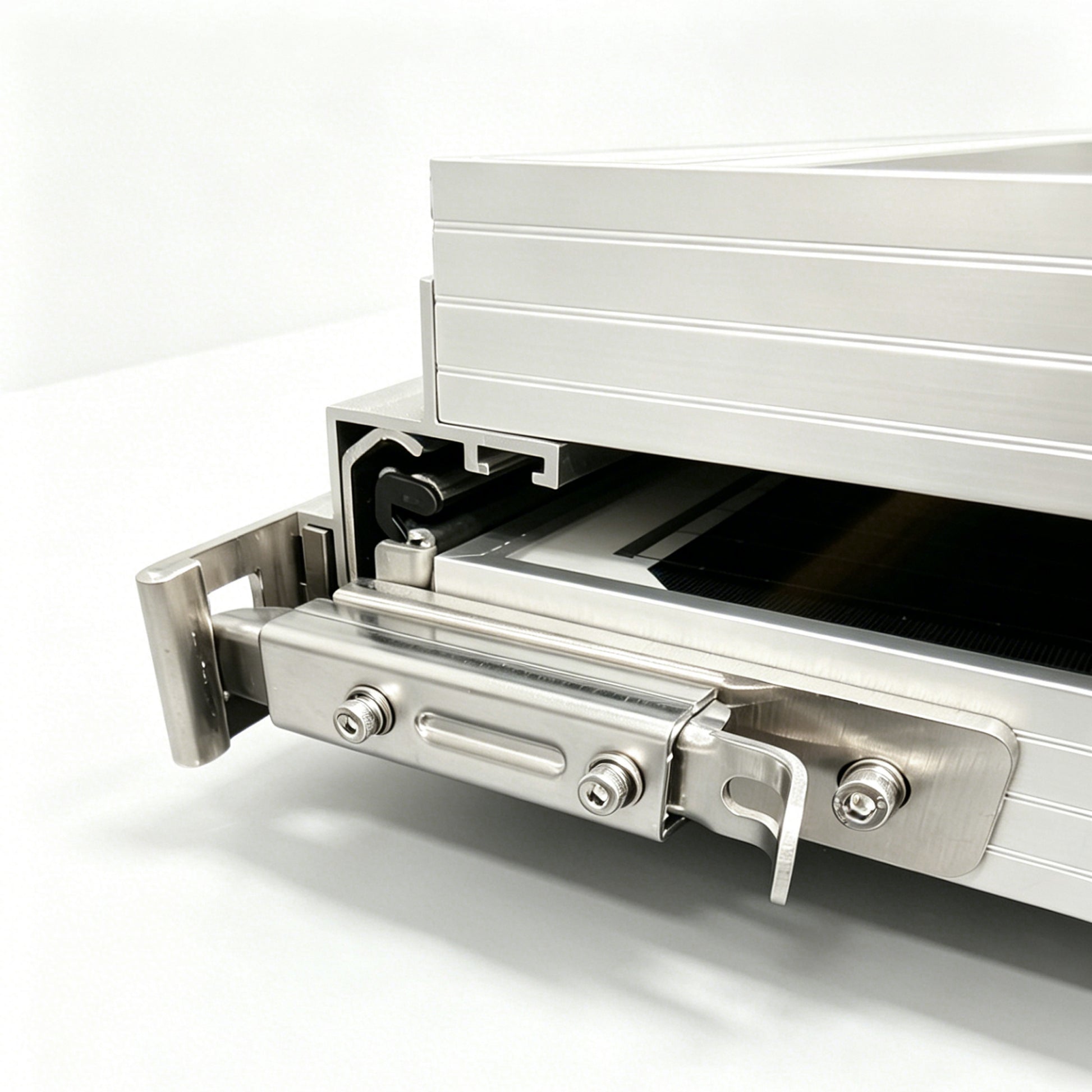

  • Spring-Loaded Latch Assembly × 1
  • M6×50 Screw Kit × 8

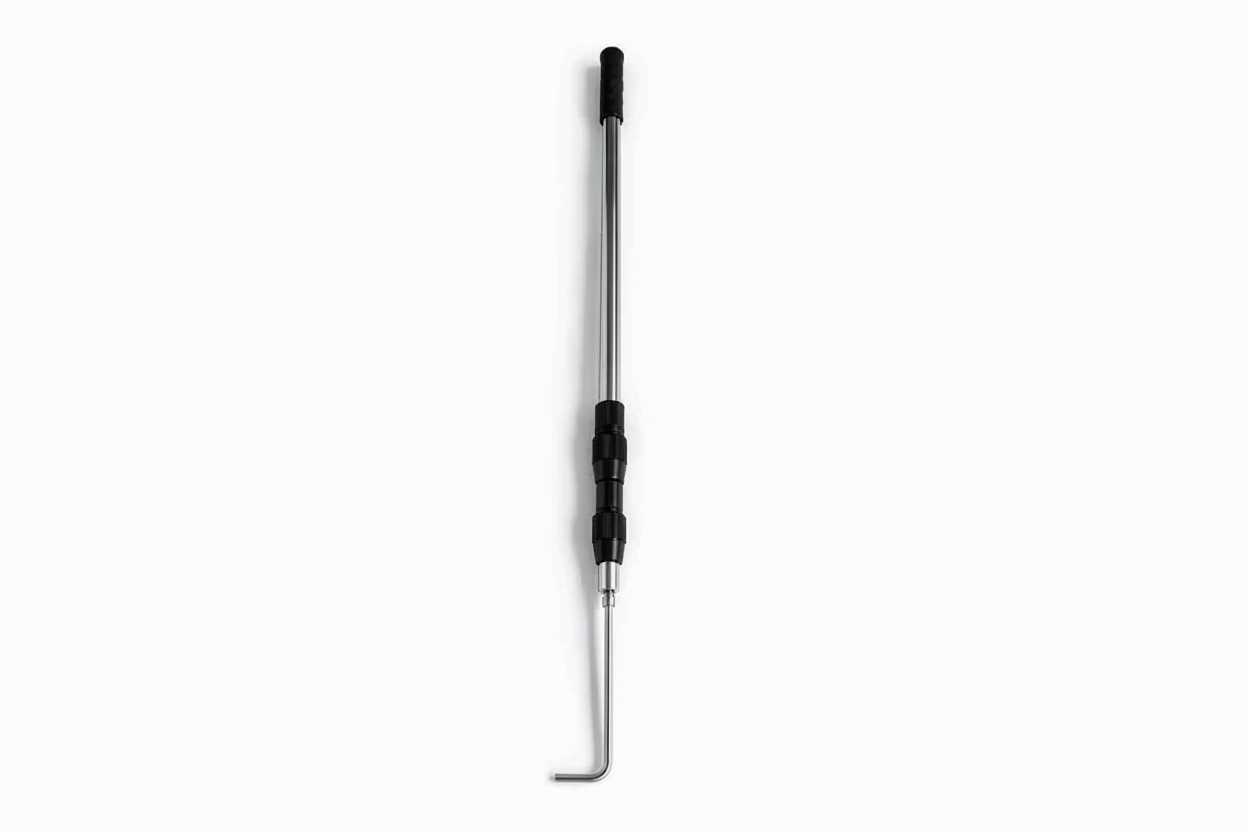

  • Extendable Pole with Hook (1.7 m / 5.6 ft) × 1
  • Instruction Manual × 1
  • Latch Strike Bracket Assembly × 1
  • M5 Rivets × 20
View full details

Designed for Real-Life Scenarios

  • For RV owners

    Before driving, simply slide the lower solar panel in and secure it in the retracted position. No complex locking mechanisms — just reliable, manual retraction.

  • For off-grid and rooftop users

    The slide-out structure supports parallel expansion with multiple panels, allowing you to scale according to your power needs.

  • For easy maintenance

    When fully retracted, cleaning and inspection are simple. The manual includes clear warnings about sand and dust intrusion in windy areas — just clean the rails before use.

Sumyok

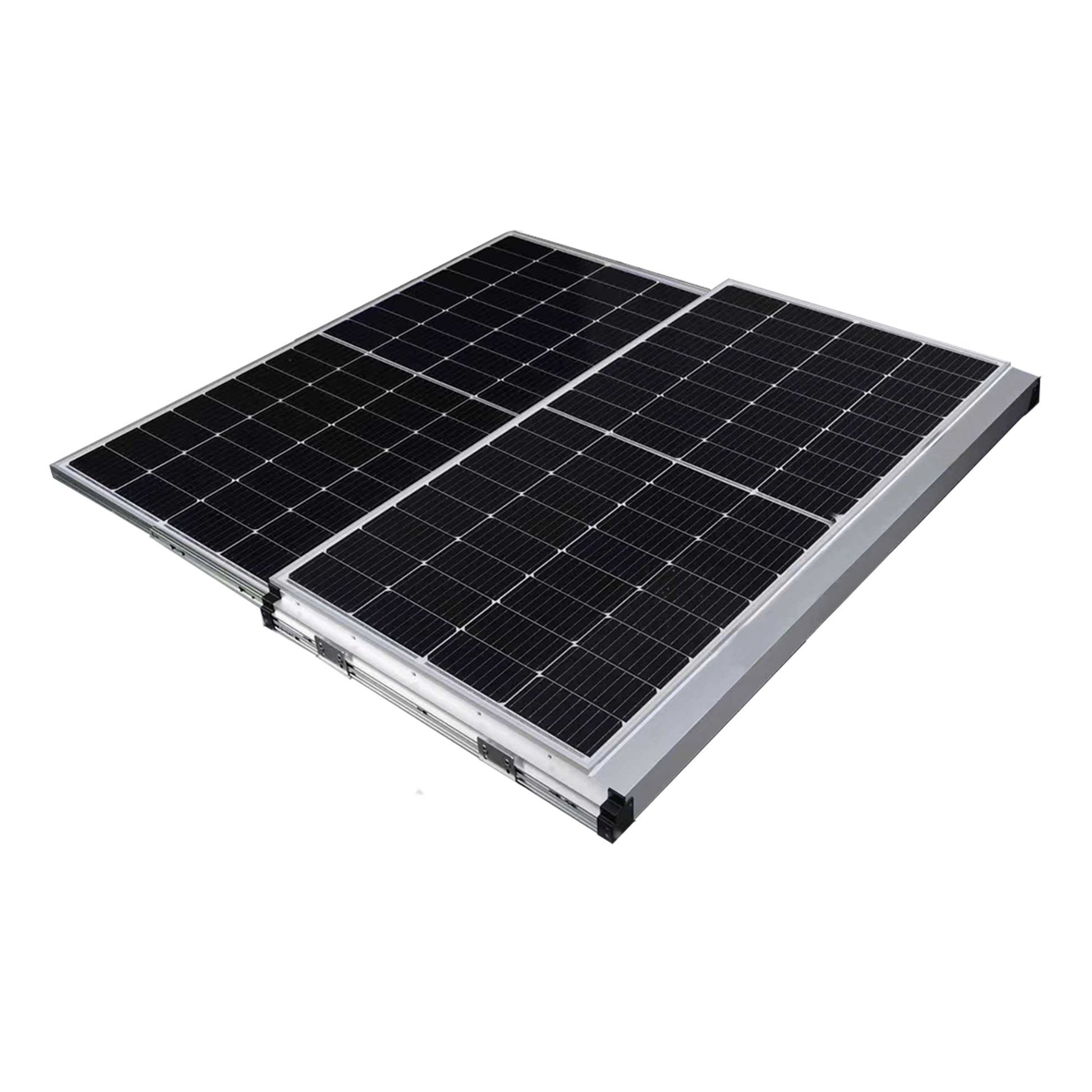

Dual-panel stacked design

Increases power generation while reducing footprint. When fully retracted, the volume is greatly reduced for travel, storage, and severe weather protection.



Sumyok

Stepless length adjustment

By manual operation, the extension length can be adjusted steplessly to match different solar panel sizes and installation spaces. The rail travel is 800 mm (31.5 in).

Sumyok

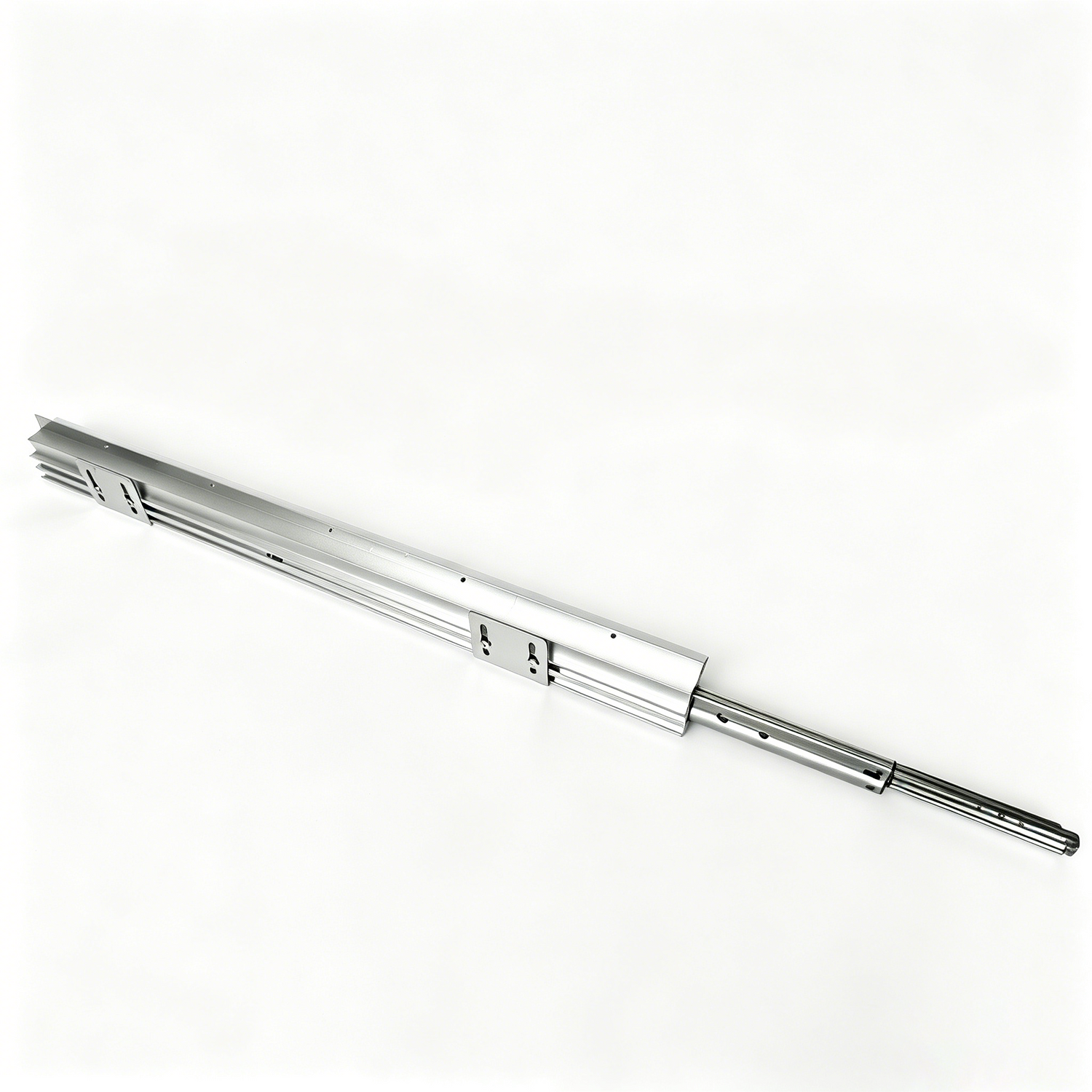

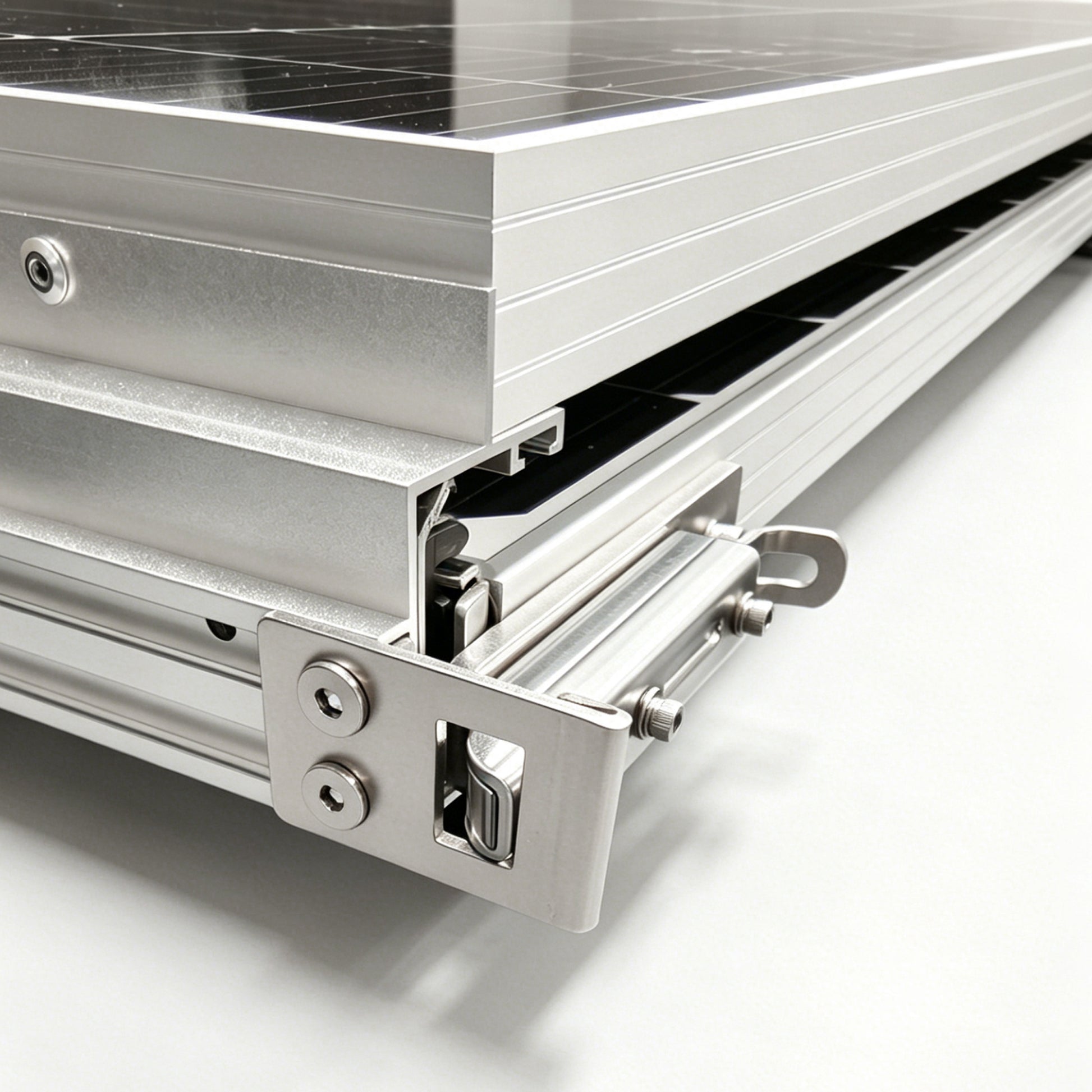

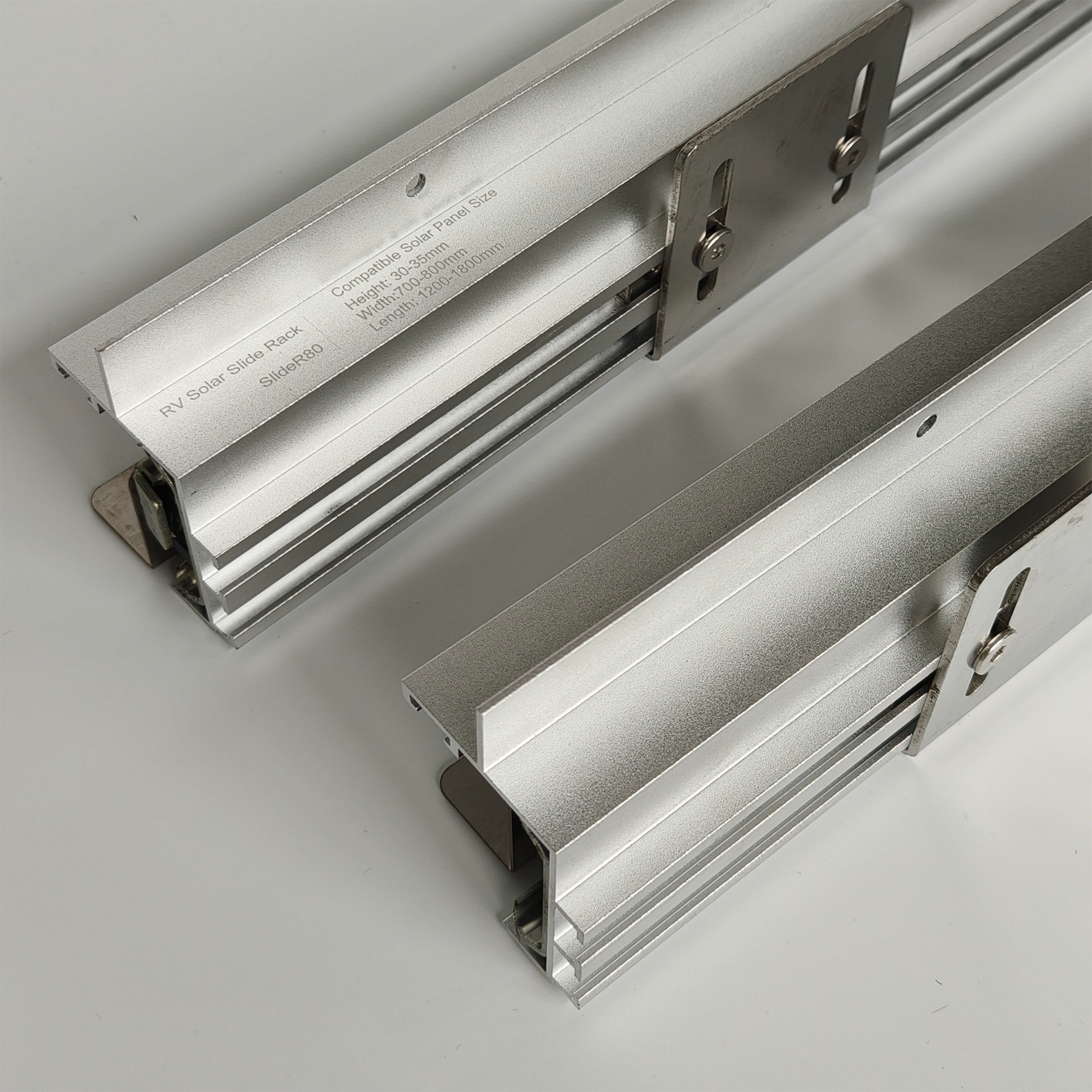

Ball bearing rail structure

Smooth sliding operation. One person can easily complete the slide-out operation using the included extendable pole (1.7 m / 5.6 ft).

FAQ

Will this rack fit my specific vehicle (e.g., Sprinter, Ford Transit, Ram Promaster, Cargo Trailer, or custom rigs)? Can it attach to existing roof racks?

Yes, highly compatible! The mounting surface must be flat, and drilling is required for installation. Our rack is universally engineered to fit a wide range of platforms, from standard Sprinter/Transit/Promaster vans to large custom rigs and trailers. It can be directly integrated with many standard attached roof racks (like Orion) or van tracks.

Are the solar panels included? Can I buy justthe slide panel, or do I need the whole rack?

Solar panels are NOT included. We specialize in engineering and selling the ultra-heavy-duty sliding/tilt hardware systems, allowing you to choose the perfect solar brands for your energy goals. You are purchasing the complete structural rack system designed to mount your panels securely.

What is the maximum size and weight of solar panels I can use? Can I use 200W, 250W, or 400W+ panels?

It fits almost all standard 200W to 250W panels with a width ranging from 27.6" to 31.5" (700mm to 800mm), such as Renogy, Rich Solar, Eco-Worthy, Longi, etc. For example, the Renogy Bifacial Solar Panel 250W (60.9 x 30 x 1.2 inches) fits perfectly! The maximum weight capacity is 44 lbs (20kg) per panel.

When the lower panel is slid in and entirely shaded underneath, will it cause any electrical or battery issues?

Not at all. When the system is retracted for driving, the lower panel acts as a protected standby unit. To maximize efficiency and prevent shading power drops, we highly recommend wiring the upper and lower panels in parallel or using a dual-channel MPPT controller. This ensures that even when fully shaded, your top panel still pumps 100% maximum power into your battery system.

How difficult is the installation? Is it really a 30-minute job?

For a standard DIY enthusiast or a professional van builder, the basic mechanical assembly takes about 30 minutes to 1 hour. However, because every van's roof layout, wiring route, and existing rack system vary, we suggest allocating a relaxed afternoon to ensure perfect alignment, smooth sliding calibration, and secure weatherproofing.

Where are you located? How long does shipping take, and what is the cost?

Shipping Cost: 100% FREE SHIPPING across the continental USA! The price you see is the final price delivered to your door—no hidden freight surprises at checkout. (Note: For bulk wholesale pallets or shipments, please contact us for custom logistics support).

Shipping Time: Once dispatched via FedEx/UPS, it typically takes 3–7 business days to arrive anywhere in the continental USA.
