SUMYOK Solar Tilt Mounting Rack

SUMYOK Solar Tilt Mounting Rack

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.

A solid and reliable slide-out mounting solution for RVs, rooftops, and off-grid systems.

Unlike fixed solar panel mounts, the Sumyok RV Solar Slide Rack is designed for space efficiency and flexible sun exposure. Whether you need to maximize power generation while parked or minimize footprint while traveling, this manual slide-out system gives you simple, tool-free control over your panel position.

What's Included

  • M5 Rivets × 20
  • Rail Assembly × 2
  • M6×50 Screw Kit × 8
  • Instruction Manual × 1
  • M4 and M3 Hex Keys × 1
  • Latch Strike Bracket Assembly × 1
  • Spring-Loaded Latch Assembly × 1
  • Extendable Pole with Hook (1.7 m / 5.6 ft) × 1

Specifications

Item

Details

Product Name

Sumyok RV Solar Slide Rack

Compatible Panel Length

1200 – 1800 mm

(47.2 – 70.9 in)

Compatible Panel Width

700 – 800 mm

(27.6 – 31.5 in)

Compatible Panel Height

30 – 35 mm

(1.2 – 1.4 in)

Rail Travel

800 mm

(31.5 in)

Rail Assembly Weight

2.8 kg ± 0.5 kg

(6.2 lb ± 1.1 lb) per rail



View full details

Designed for Real-Life Scenarios

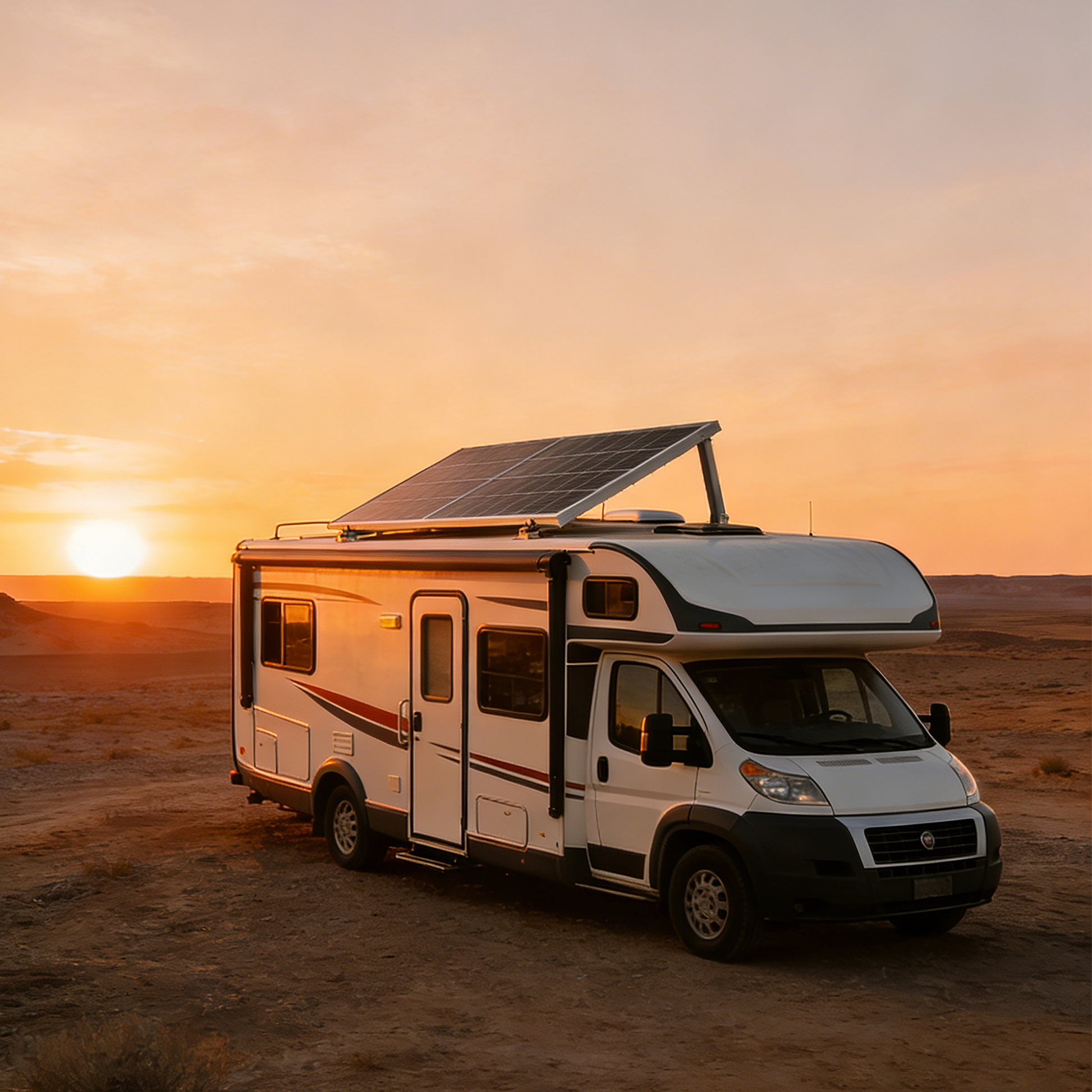

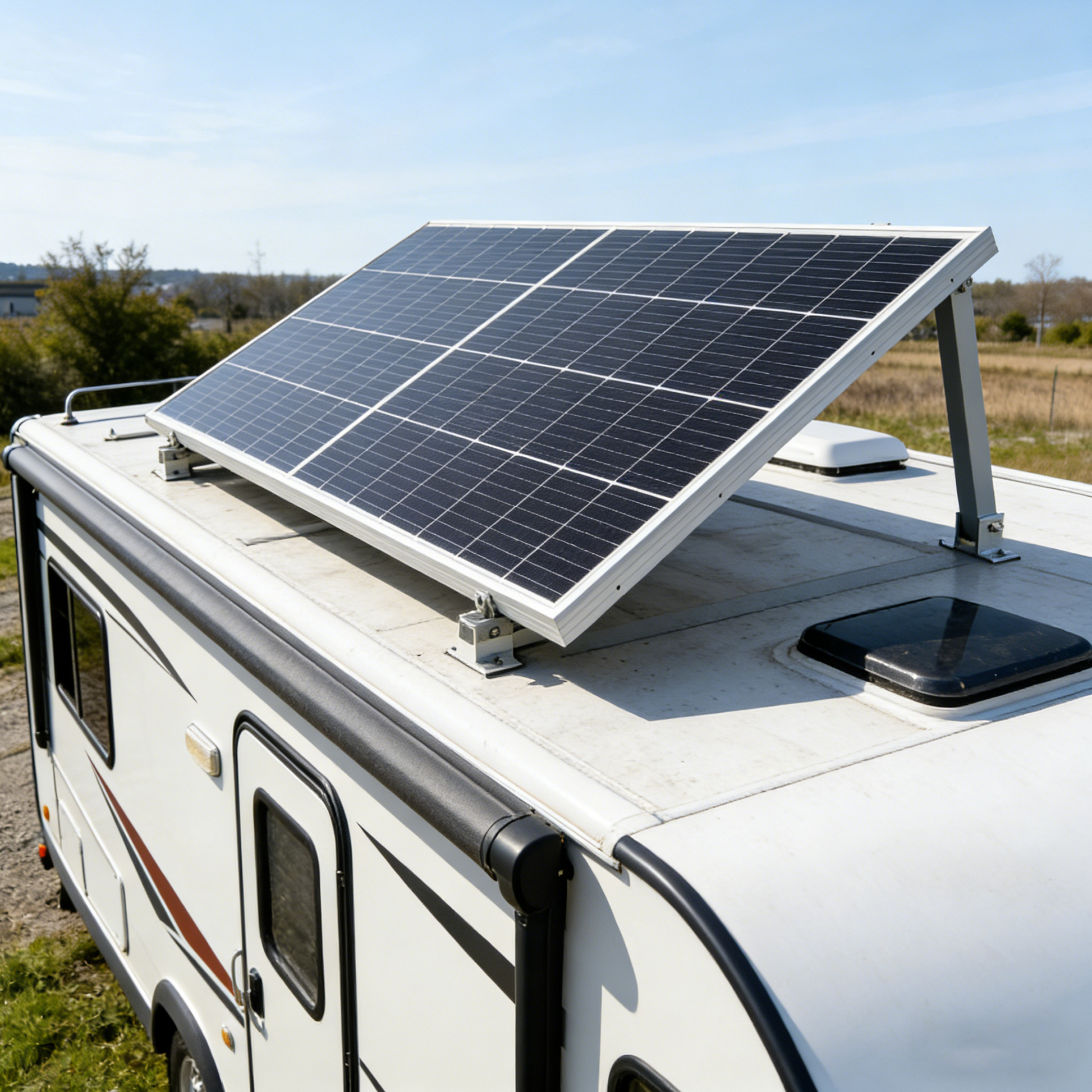

  • For RV owners and campers

    Drive with confidence. Before traveling, you simply remove the support legs and secure the panel horizontally — a clear safety step that prevents detachment on the road.

  • For solar installers

    Standardized installation process compatible with mainstream solar panels. Two mounting options (factory drain holes or drilling) give you flexibility on site.

  • For off-grid and home use

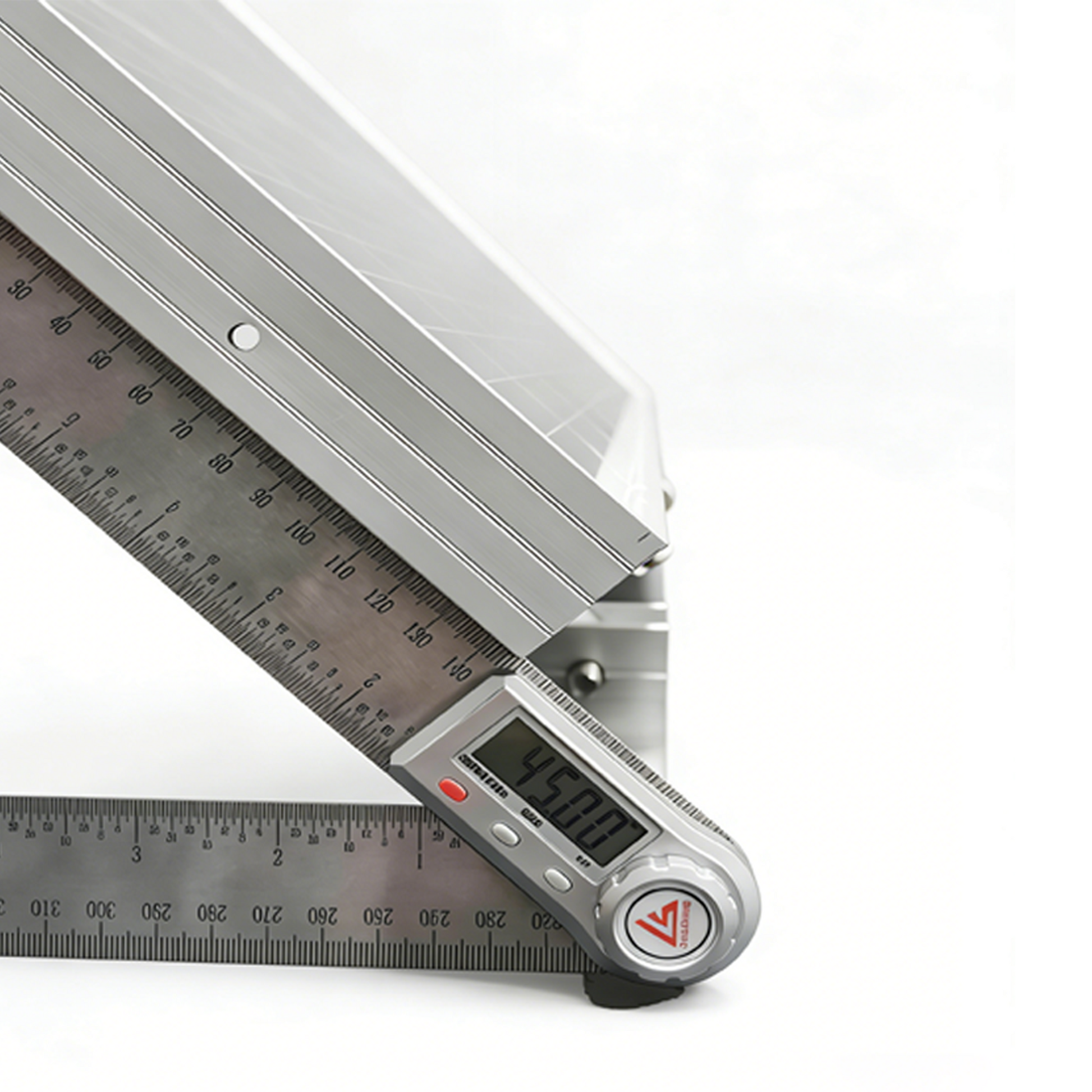

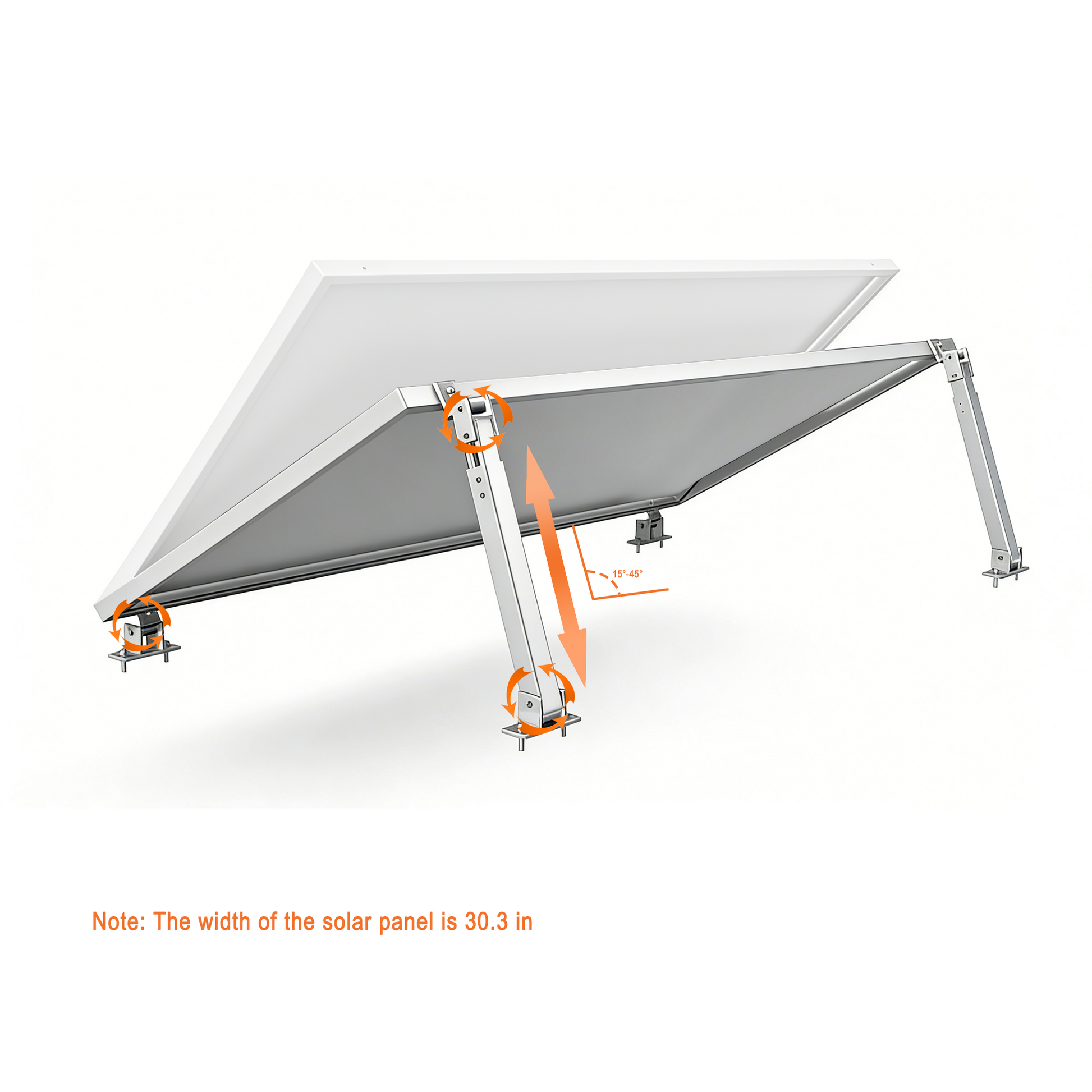

    Adjust the angle from 15° to 45° in both directions to follow the sun across seasons. No complex electronics — just reliable, manual control.

Sumyok

Reinforced structural connection

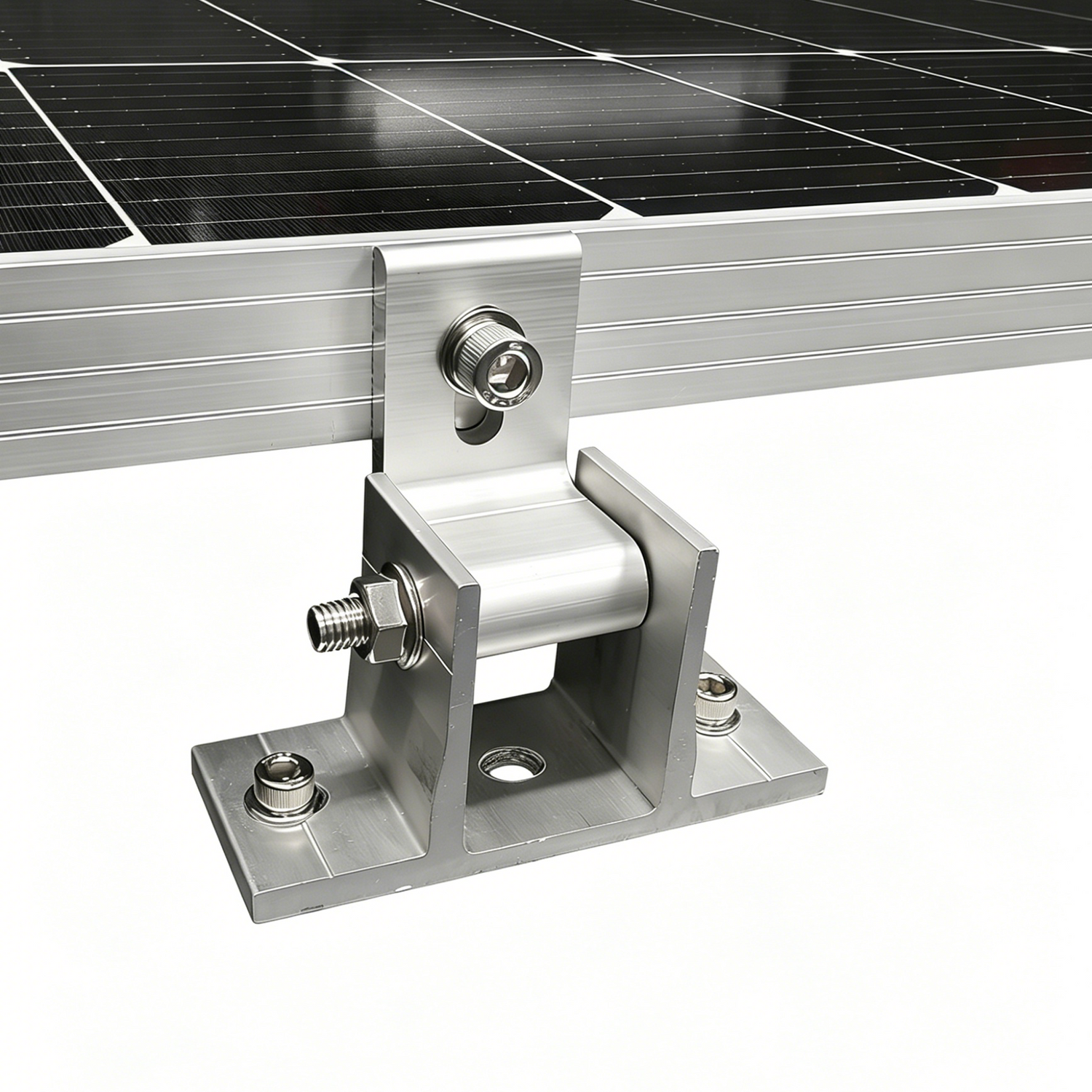

The bracket attaches to the solar panel's aluminum frame through bolted connections with a serrated contact surface. This design reduces the risk of loosening, even under continuous vibration.

Sumyok

Impact and shock resistance

Built to withstand road bumps, rough terrain, and sudden jolts. The support legs and connectors remain stable without relying on easily loosened locking mechanisms.

Sumyok

No over-extension, no unexpected detachment

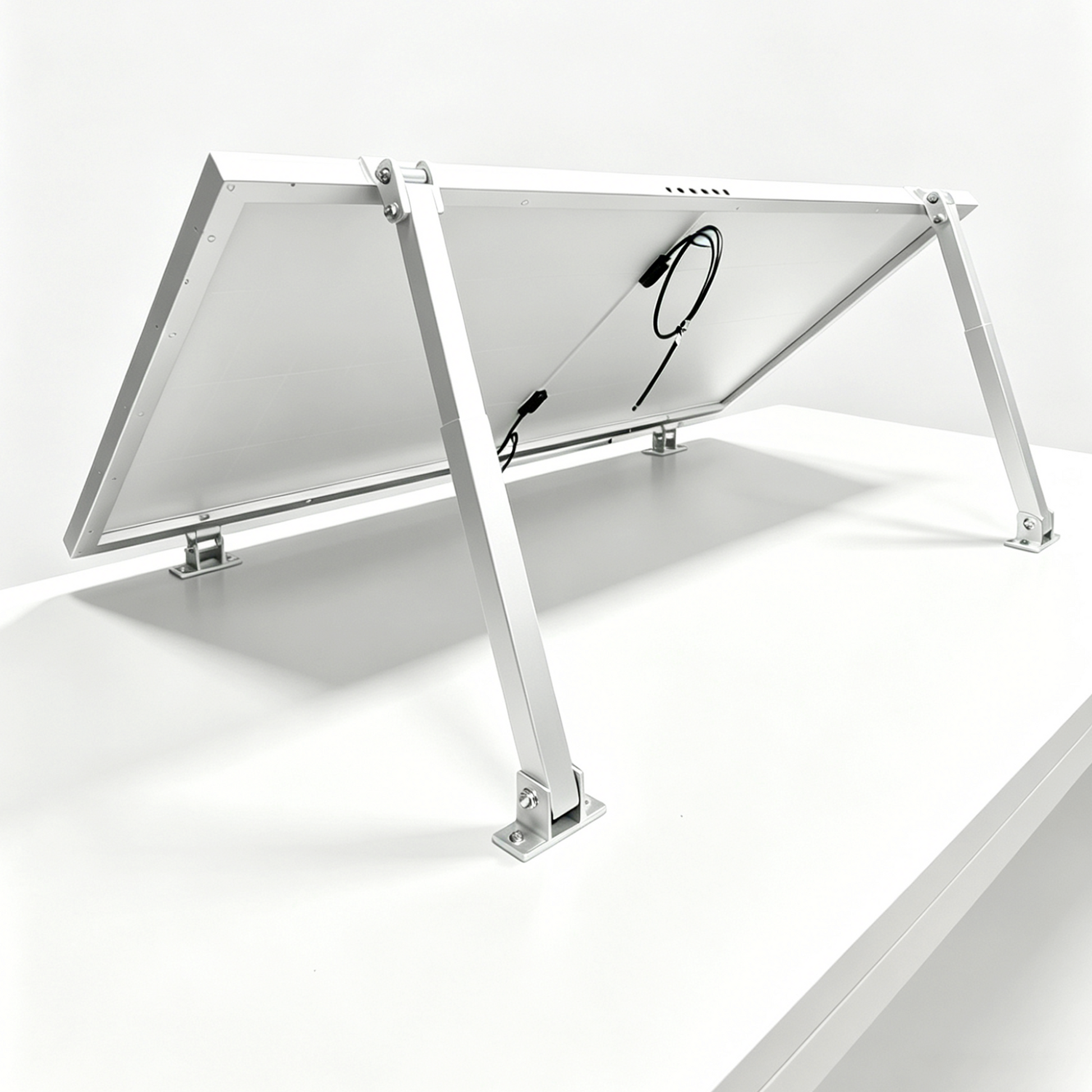

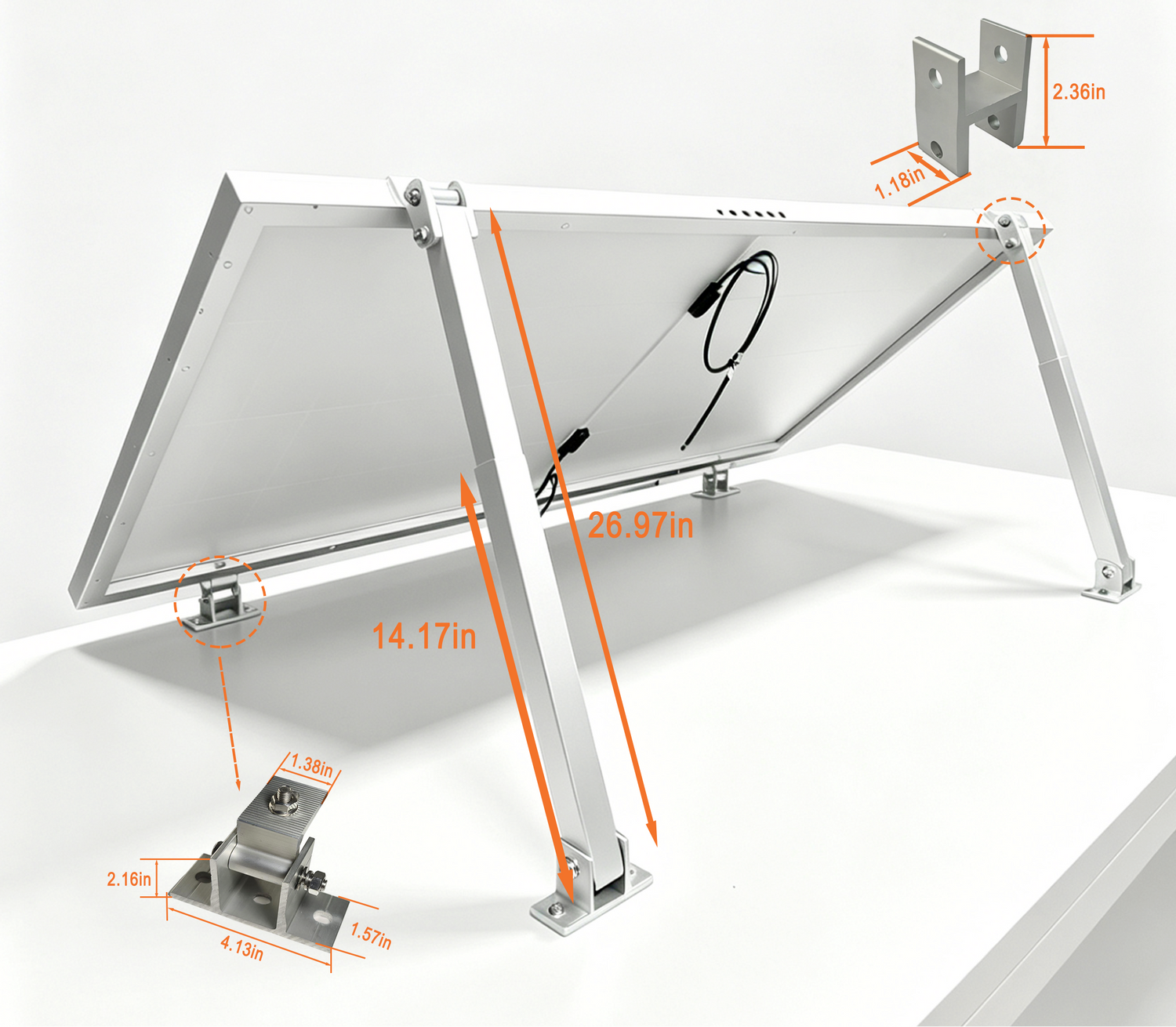

The telescopic support leg has a clear adjustment range (14.17 in – 26.97 in). The manual clearly warns against completely removing the screws, helping you avoid accidental falls or panel damage.
